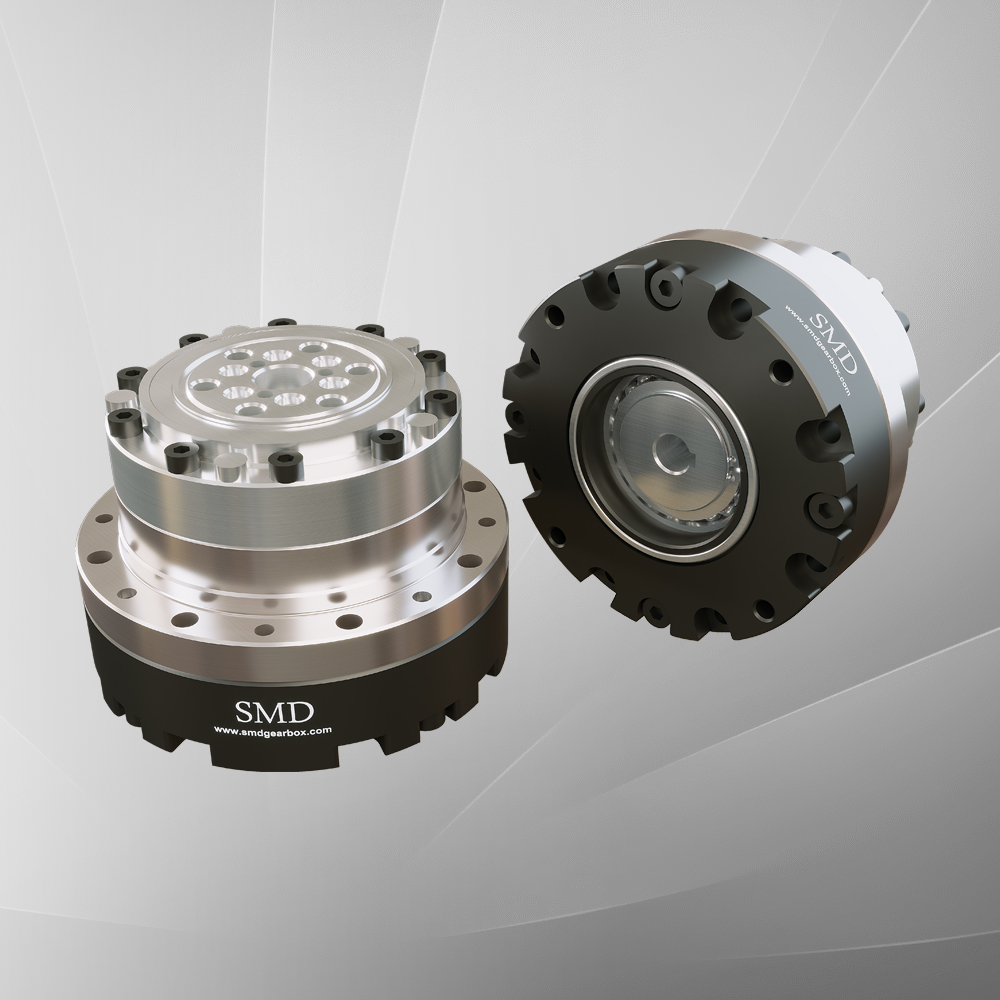

Harmonic Gearbox - Cup Type

SCSG Series
Product Description
  • Nominal Output torque : 3.5Nm to 500Nm
  • Backlash : less than 20 Arc-sec
  • Available reduction ratio :1:50,1:80, 1:100, 1:120, 1:160
  • High rigidity for stable precision work.
  • SMD Harmonic Reducer also called as Strain Wave Gearbox is more compact and higher accurate.
  • Applied in robot industry, especially for multi-axis robot joints.
Harmonic Gearbox With Solid Shaft End | SCSG17-50-8-30-45-M4

Harmonic Gearbox - Cup Type

  • Specification Chart
  • Download Catalogue
Performance Unit Ratio SCSG14 SCSG17 SCSG20 SCSG25 SCSG32 SCSG40 SCSG45
Nominal Output Torque Kgf*m/Nm 50 0.55/5.4 1.6/16 2.5/25 4/39 7.8/76 14/137 18/176
80 0.8/7.8 2.2/22 3.5/34 6.4/63 12/118 21/206 32/313
100 0.8/7.8 2.4/24 4.1/40 6.8/67 14/137 27/265 36/353
120 - 2.4/24 4.1/40 6.8/67 14/137 30/294 41/402
160 - -/24 4.1/40 6.8/67 14/137 30/294 41/402
Maximum Acceleration Torque Kgf*m/Nm 50 1.6 3.0 4.7 9.0 18.0 33.0 47.0
80 1.6 3.0 4.8 9.1 19.0 33.0 48.0
100 1.8 3.3 5.1 9.8 20.0 36.0 51.0
120 - 3.5 5.5 11.0 22.0 39.0 55.0
160 - - 6.4 13.0 26.0 46.0 64.0
Emergency Stop Torque Kgf*m/Nm 50 1.8/18 3.5/34 5.7/56 10/98 22/216 41/402 51/500
80 2.4/23 4.4/44 7.5/74 14/137 31/304 53/519 72/706
100 2.9/28 5.5/54 8.4/82 16/157 34/333 58/568 77/755
120 - 5.5/54 8.9/87 17/167 36/353 63/617 84/823
160 - - 9.4/92 18/176 38/372 66/647 90/882
Permissible Input Speed rpm 50/160 3,500 3000
Standard Backlash Arc-min 50/60 36 20 17 17 14 14 12
80 23 13 11 11 9 9 8
100 18 10 9 9 7 7 6
120 - 8 8 8 6 6 5
160 - - 6 6 5 5 4
Rated Operation Life hr 50/160 10,000 At permissible input speed and nominal output torque.
Operating Temperature °C 50/160 -10 °C to 40 °C (ambient) / 90 °C (case maximum temp.)
Lubrication - 50/160 4B No.2
Ingress Protection Class IP 50/160 IP54
Gearhead Inertia (Ix10¯4kgm²) 50/160 0.033 0.079 0.193 0.413 1.69 4.5 8.68
(Jx10¯5kgm²) 50/160 0.034 0.081 0.197 0.421 1.72 4.59 8.86
Weight kg 50/160 0.52 0.68 0.98 1.5 3.2 5 7
  • At input speed above 3000 rpm.
  • At permissible input speed and Continuous Output Torque.
  • Permissible axial load or permissible radial load is the value that satisfies the reducer life when either a pure radialload or an axial load is applied to the flange face. (When radial load is Lr+R=0mm, and axial load is La=0mm)

SCSG17-50-8-30-45-M4, SCSG17-80-8-30-45-M4, SCSG17-100-8-30-45-M4, SCSG20-50-14-50-70-M5, SCSG20-80-14-50-70-M5, SCSG20-100-14-50-70-M5, SCSG25-50-14-50-70-M5, SCSG25-80-14-50-70-M5, SCSG25-100-14-50-70-M5, SCSG25-120-14-50-70-M5, SCSG32-50-19-70-90-M6, SCSG32-80-19-70-90-M6, SCSG32-100-19-70-90-M6, SCSG32-120-19-70-90-M6
