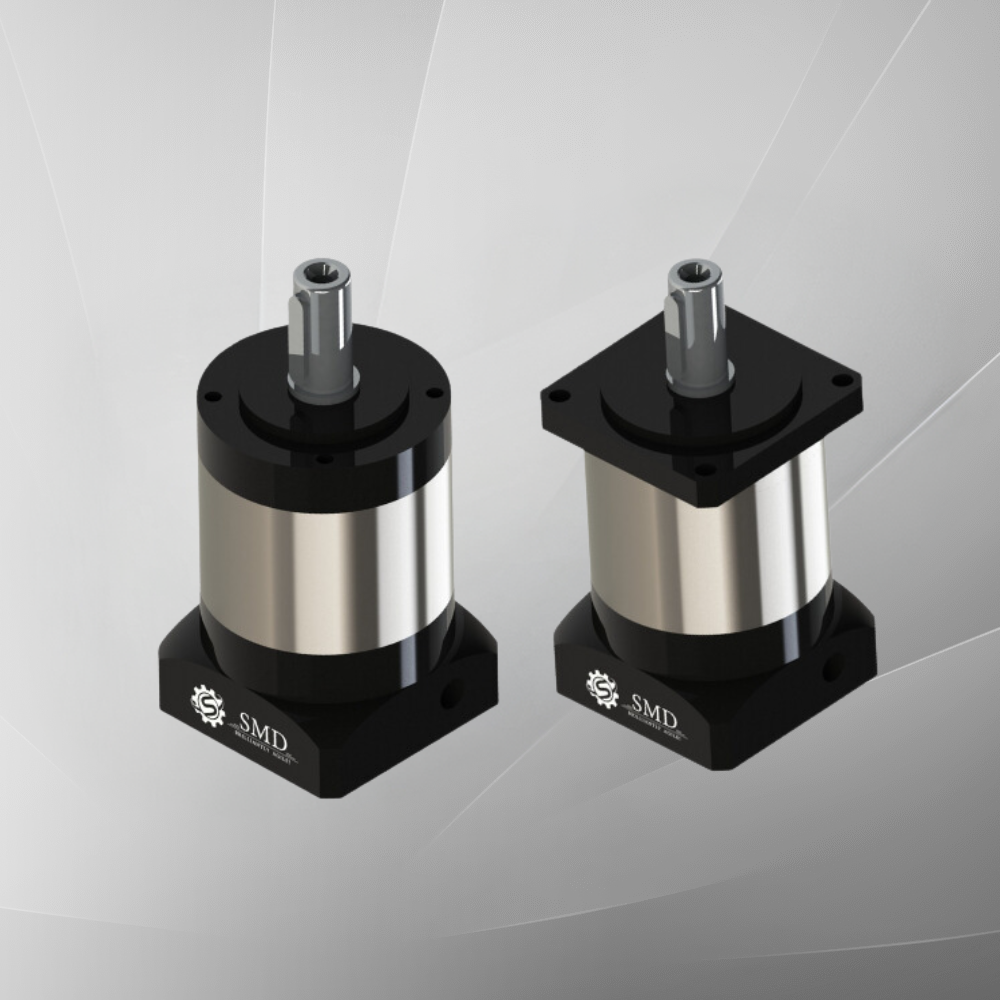

Planetary Gearbox with Output Shaft

This Planetary Speed Reducer has a Shaft-style Output face.
Output housing is Aluminium.
Suitable for Combination with any kind of motors.
Total enclosed design, easy to install and combination.
High rating torque and low inertia.
The design of long shaft is suitable to drive by rack and simplify the mechanism.

Information	Stage	Ratio	SPE060S	SPE080S	SPE090S	SPE115S	SPE142S
Defined Output Torque(Nm)	1	3	18	40	50	125	290
		4	36	90	110	230	460
		5	40	110	125	260	550
		6	20	40	50	90	340
		7	20	40	50	90	340
		8	12	22	32	70	210
		10	12	22	32	70	210
	2	12	36	90	110	230	460
		15	40	110	125	260	550
		16	36	90	110	230	460
		20	40	110	125	260	550
		25	40	110	125	260	550
		28	36	90	110	230	460
		30	18	40	50	125	290
		35	40	110	125	260	550
		40	36	90	110	230	460
		50	40	110	125	260	550
		60	20	40	50	90	340
		70	20	40	50	90	340
		80	12	22	32	70	210
		100	12	22	32	70	210
Motor Shaft Size	1,2	3~100	6-14	14-19	14-19	16-24	19-35
Peak Output Torque (Nm)	1,2	3~100	Double Rated Output Torque
Defined Input Speed(RPM)	1,2	3~100	4000	3500	3500	3500	2500
Maximum Input Speed(RPM)	1,2	3~100	4000	3500	3500	3500	2500
Backlash(arc min)	1	3~10	≤10	≤10	≤10	≤10	≤10
Backlash(arc min)	2	12~100	≤12	≤12	≤12	≤12	≤12
Torsional Rigidity (Nm / arc min)	1,2	3~100	1.8	4.7	4.85	11	55
Allowable Radial Force (N)	1,2	3~100	220	400	430	1000	4500
Allowable Axial Force (N)	1,2	3~100	240	420	450	1240	4800
Life Time (hrs)	1,2	3~100	10000
Efficiency (%)	1	3~10	≥96
Efficiency (%)	2	12~100	≥93
Weight (kg)	1	3~10	1.7	4.4	4.4	12	26.5
Weight (kg)	2	12~100	1.9	5	5	14	29.6
Temprature (℃)	1,2	3~100	-10 ℃~+80℃
Lubricating Oil			Synthetic Lubricant
IP Grade			IP65
Installation Direction			In any direction
Noise Level(db(A))	1,2	3~100	≤61	≤63	≤63	≤68	≤75
